Highlight Transition Action (ExecuteInvoker)

An event is planned and marketed via e-mail. A mail-to tag is used in the mail, or on registration pages, to trigger the response for registration.

Executing invokers in transition actions.
(ExecuteInvoker)

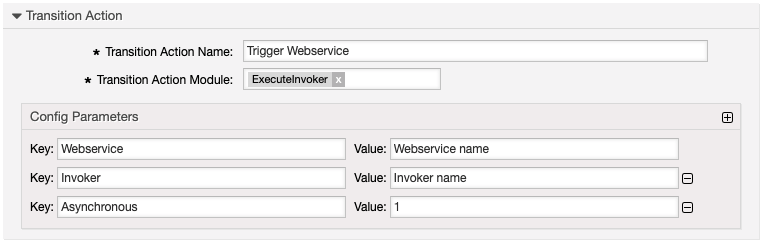

Figure Invoker Configuration

Overview

An event is planned and marketed via Email. A mail-to tag is used in
the mail, or on registration pages, to trigger the response for
registration.

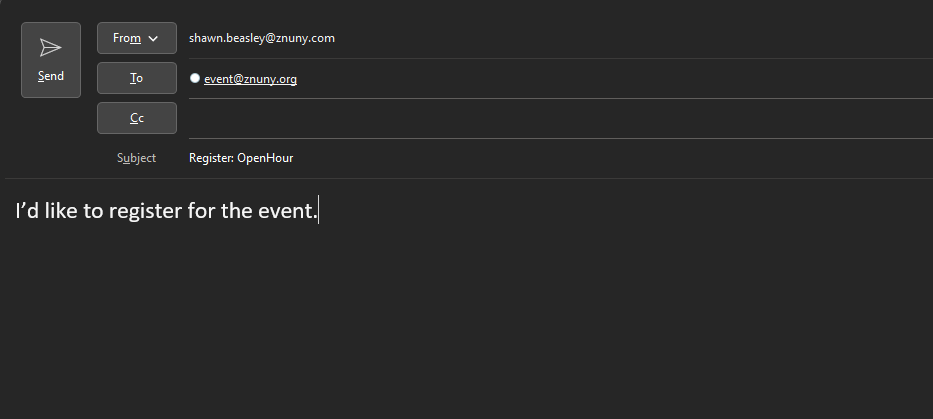

Figure Mail Example

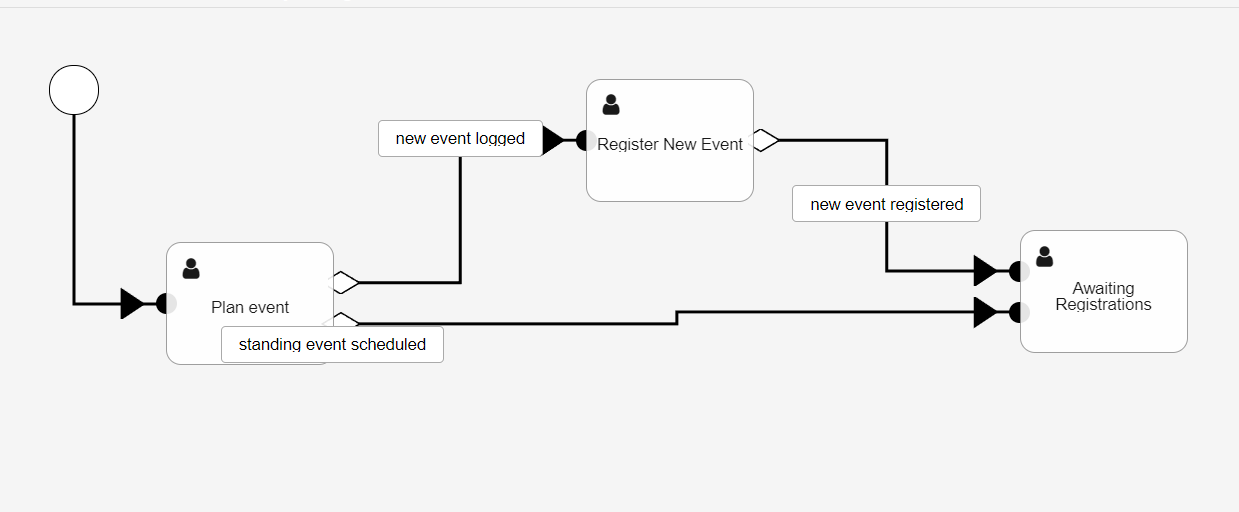

Figure Process Overview

Znuny can trigger registration to a group of users, accept
registrations, count and track the total allowed users and track individual
communication with each participant as each registration creates a
ticket linked to the event.

A central process manages event registration.

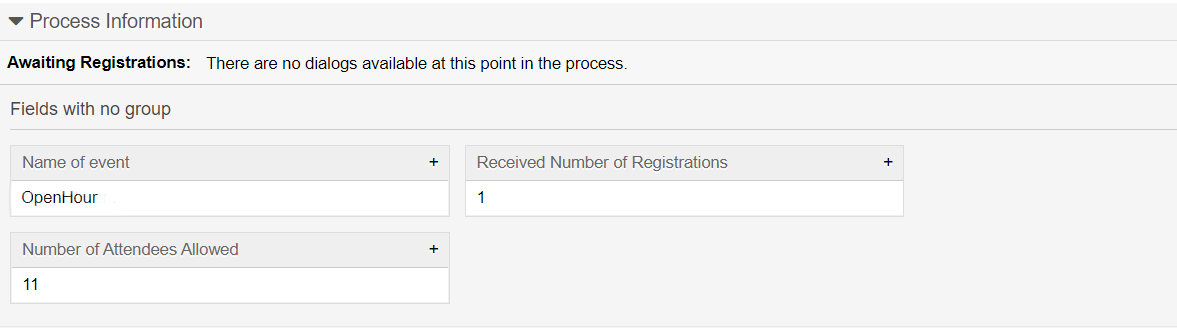

Figure Control Process Information

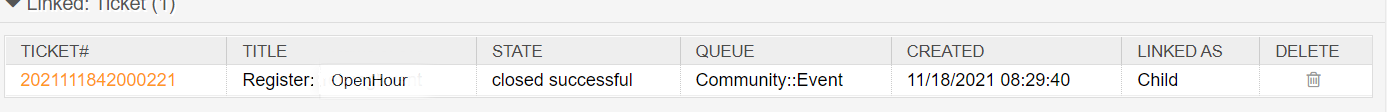

Figure Linked Registrations

Is a slot available, then the user is registered. If not, then registration is declined.

Software Requirement

Znuny 6.2 or higher is required.

Technical Setup

The following settings are required in Znuny

  • Postmaster Filter - used to set and search for events.
  • Webservice - to search and register users.
  • Process management - to create the processes used as logic for the registration process

Screenshots

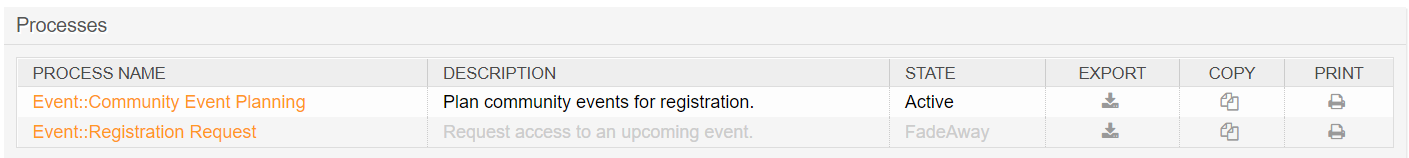

Figure Processes

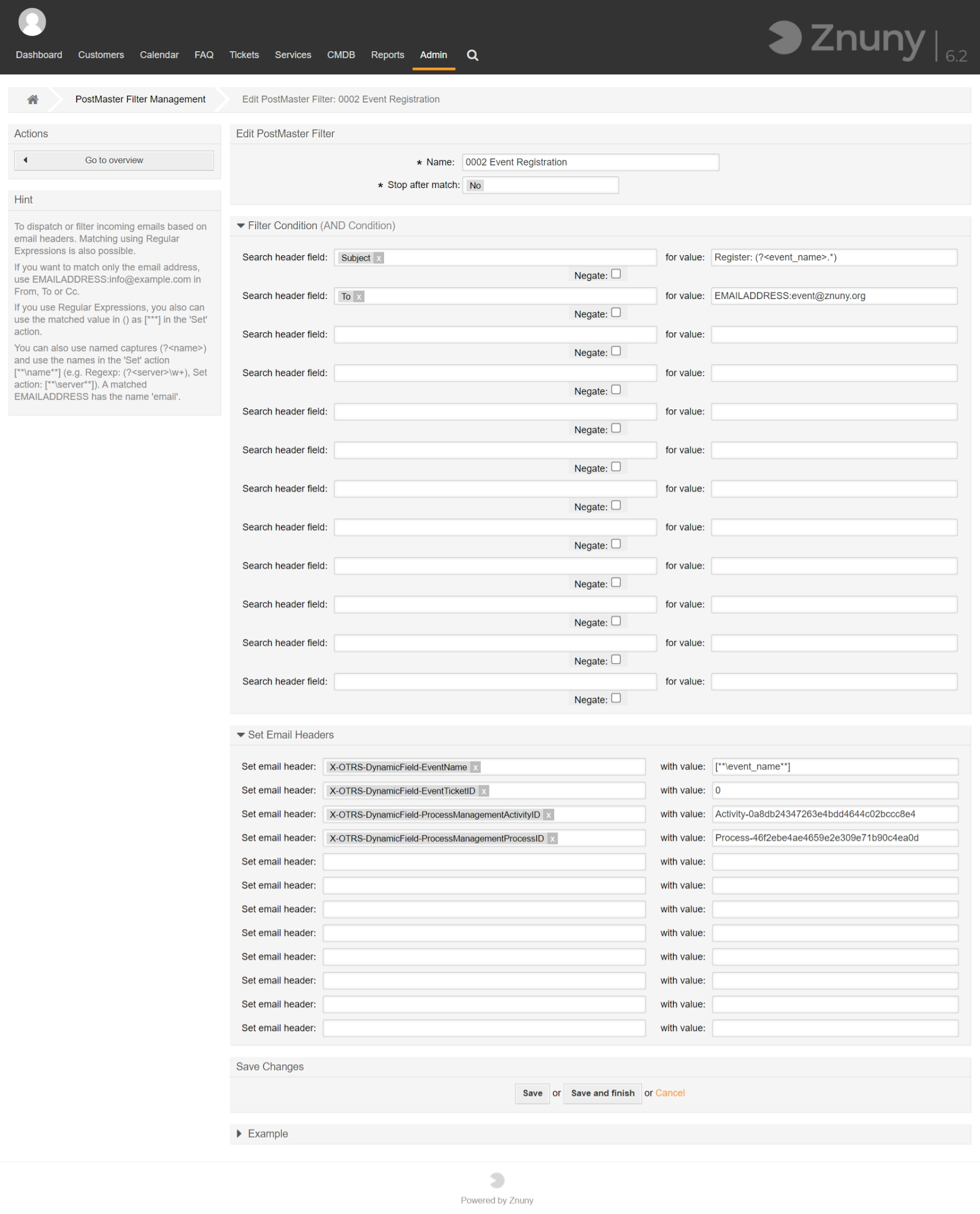

Figure Filter Configurations

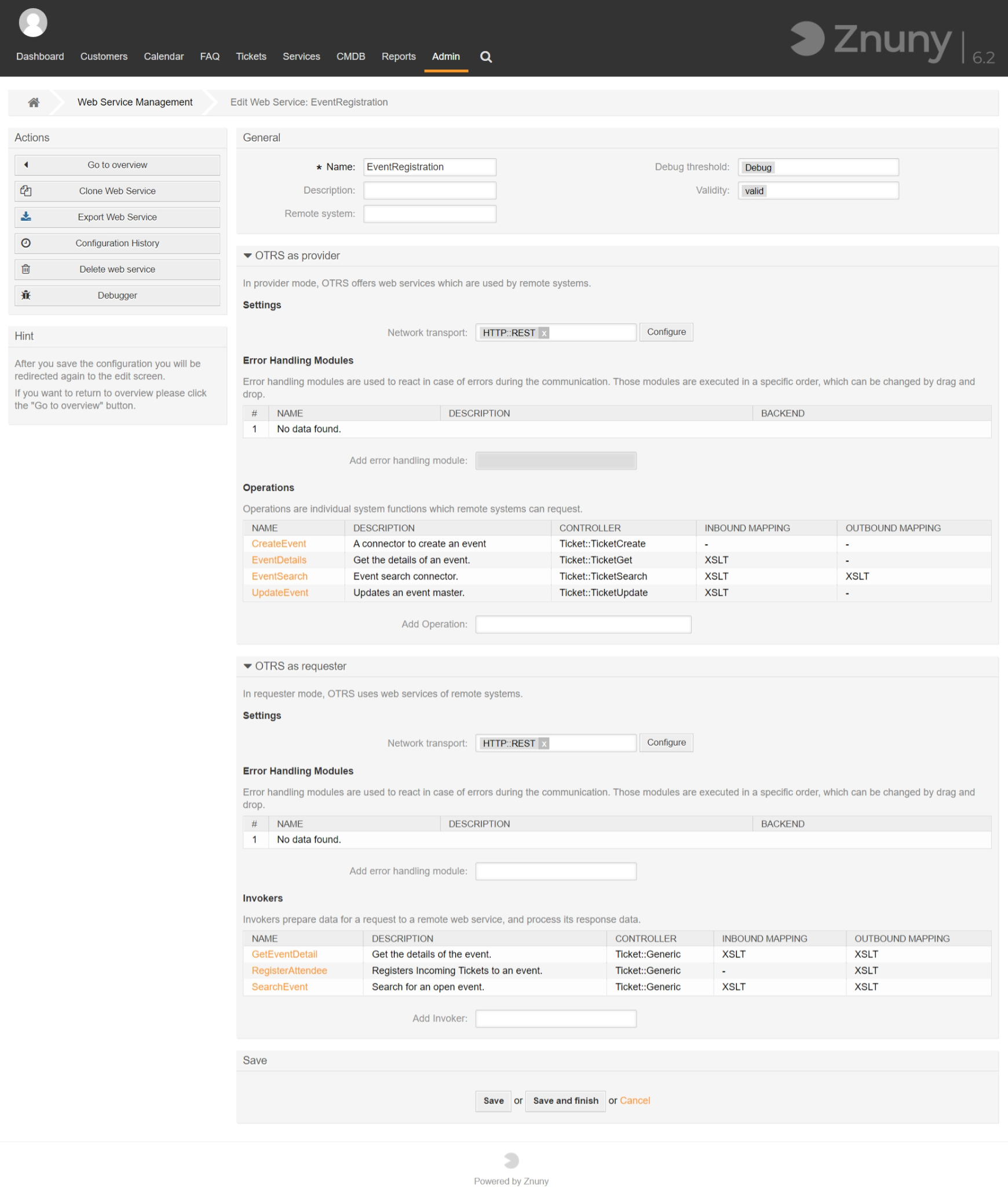

Figure Webservices
